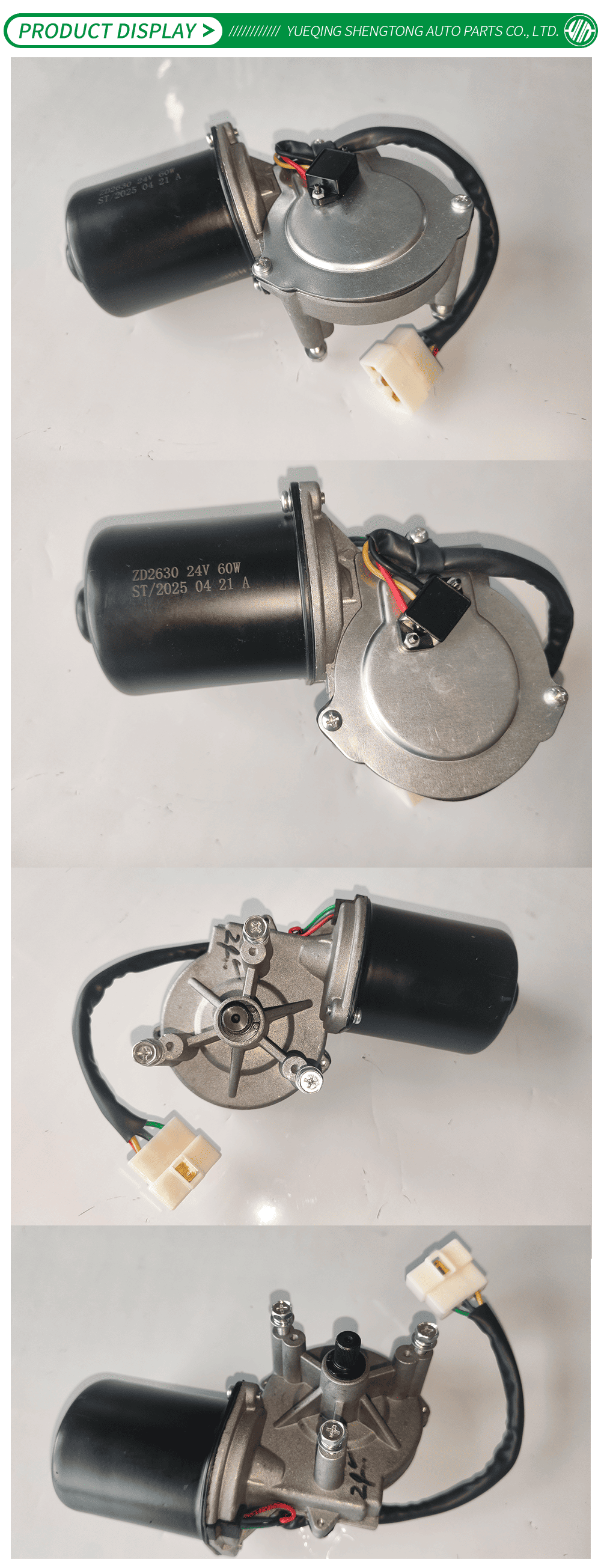

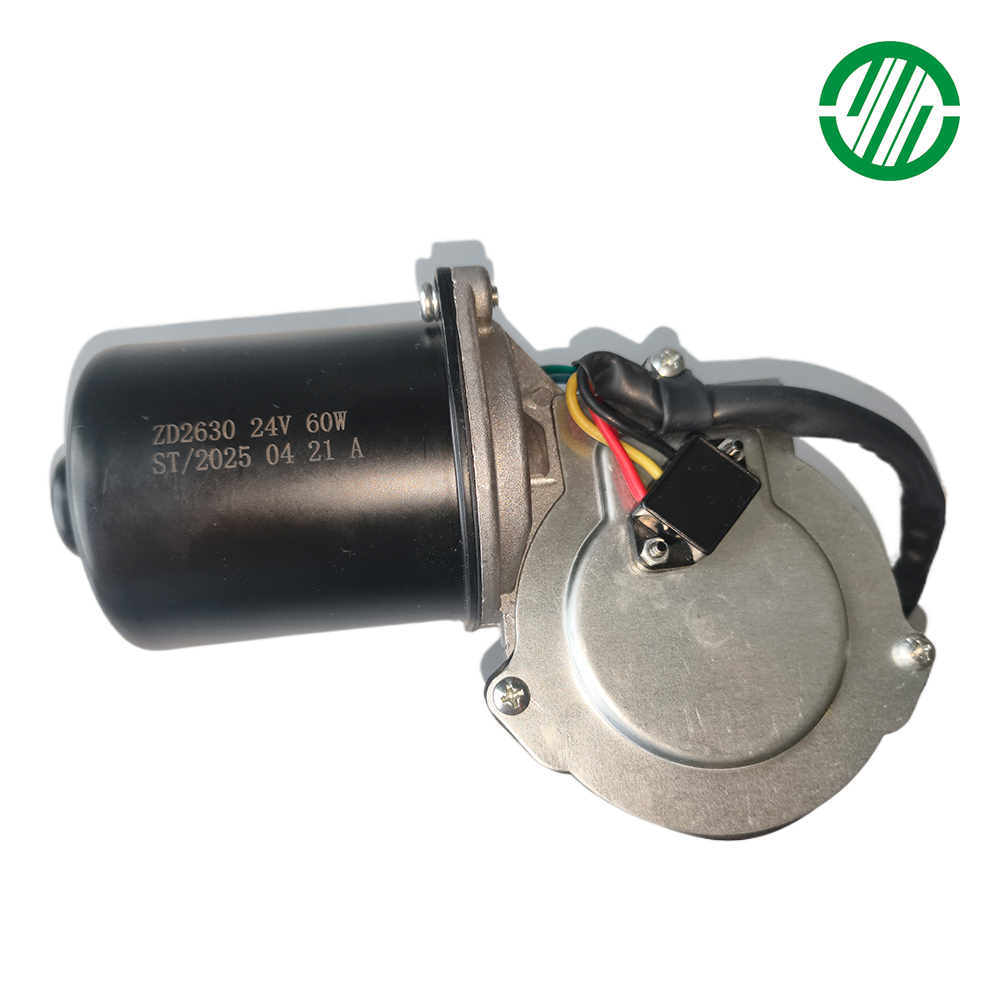

Dual-speed universal wiper motor 60W

Product Attributes
Packaging & Delivery
Product Description

Product Attributes

Model No.: ZD1630/ZD2630

Packaging & Delivery

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Motor model: ZD1630/ZD2630

Both belong to the same series. There may be minor differences in installation hole positions, shaft diameter dimensions or wiring methods between the two to adapt to the wiper system layout of different medium and large-sized vehicles, but the core performance (such as power and speed mode) remains consistent, facilitating users to select the appropriate type based on specific equipment requirements.

Power: 60W

Compared with the 50W model, the 60W power further enhances the torque output capacity. This feature is particularly important for medium and large-sized construction machinery, trucks, and medium-sized buses - these vehicles have larger windshields (the width of some trucks' front windshields can reach over 2 meters), longer and heavier wiper blades, and require stronger power to drive them to swing stably, even in harsh conditions such as mixed rain and snow or sand adhering to the glass. It can also ensure that the water scraping effect does not decline.

Applicable Angle: 50-120°

Although the swing Angle range (50-120°) is slightly smaller than that of the 50-170° model, this design is highly compatible with the shape of the windshields of medium and large-sized vehicles:

The windshields of trucks and medium-sized buses are mostly "wide but not overly wide" rectangles or trapezoids. A maximum swing Angle of 120° can already cover the effective field of view area of the glass (to prevent the wiper blades from swinging too much and colliding with the vehicle frame).

The minimum Angle of 50° can be adapted to the narrow observation Windows of some devices, taking into account the needs of special scenarios.
